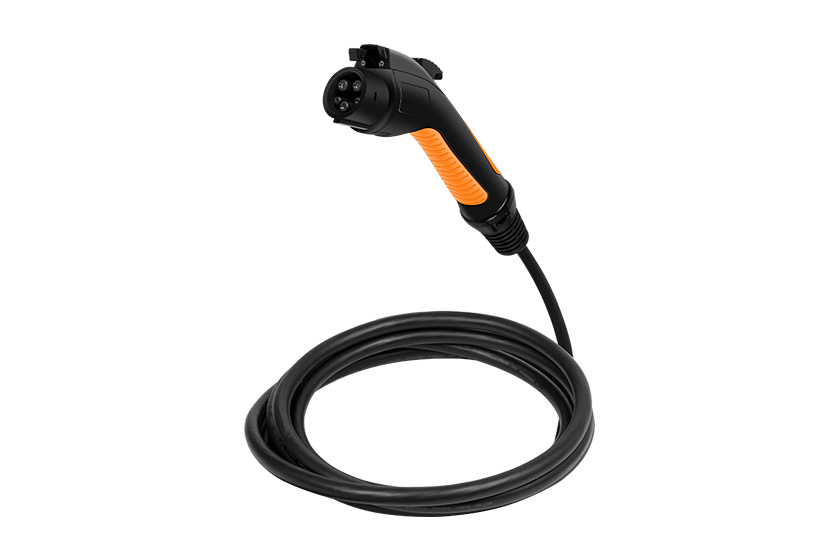

TYPE 1 Connector (SAE J1772)EV Charging Straight Cable

Over voltage protection
Over load protection
Under voltage protection
Earth leakage protection
Over-temp protection
Lightning protection
Short circuit protection

TECHNICAL PARAMETERS

Model Power Supply Type Voltage Current Max Power Standard Cable Spec Total Cable Length IP-Class Fire-Rating Operating Temperature
16A KEVP-27-SA-ORANGE Single-phase 220-250V AC 16 A 3.7kW IEC/EN 62196 EN50620 & IEC62893 3*2.5mm²+1*0.75mm² 5m IP54 UL94 V-0 -30°C ~ 50°C
32A KEVP-27-SA-ORANGE Single-phase 220-250V AC 32A 7.4kW IEC/EN 62196 EN50620 & IEC62893 3*6mm²+1*0.75mm² 5m IP54 UL94 V-0 -30°C ~ 50°C
