Product Center / EV Charging Cable

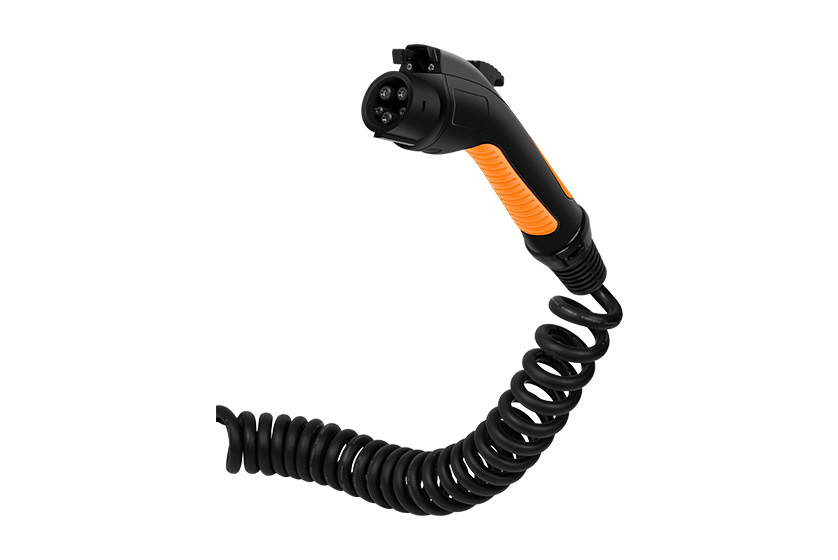

TYPE 1 Connector (SAE J1772)EV Charging Spring Cable

Over voltage protection
Over load protection
Under voltage protection
Earth leakage protection
Over-temp protection
Lightning protection
Short circuit protection

TECHNICAL PARAMETERS

Model Power Supply Type Voltage Current Max Power Standard Cable Spec Total Cable Length IP-Class Fire-Rating Operating Temperature
16A KEVP-27-SASP-ORANGE Three-phase 380-450V AC 16 A 11.0kW IEC/EN 62196 EN50620 & IEC62893 5*2.5mm²+1*0.75mm² 5m IP54 UL94 V-0 -30°C ~ 50°C
32A KEVP-27-SASP-ORANGE Three-phase 380-450V AC 32A 22.0kW IEC/EN 62196 EN50620 & IEC62893 5*6mm²+1*0.75mm² 5m IP54 UL94 V-0 -30°C ~ 50°C
